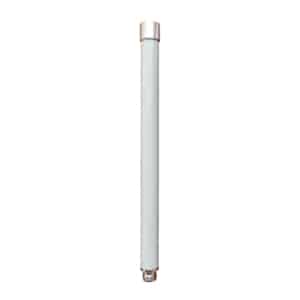

2.4/5GHz Dual Band 6-Ports MIMO Omnidirectional WiFi Antenna

Model NO: TOF-2458-8FV
  • Operated at 2400-2500/5150-5850MHz frequency band on each port
  • Six independent vertical antenna in a single housing
  • Outdoor pole mount installation
  • Rugged UV Protected ABS antenna housing
  • SMA male connector or other options

  • Product Detail
Electrical Specifications
Frequency-MHz2400-2500/5150-5850
Gain-dBi5.5/7.5
VSWR<1.5/<2
Polarization 6×Vertical
Horizontal Beam Width 360°
Vertical Beam Width28°/22°
Impedance-ohms 50
Max. Input Power-W 100
Lightning Protection DC Ground
Mechanical Specifications
Connector6×SMA Male
Dimension-mm Ø132×280
Weight-kg 0.7
Mounting-mm Mast Ø40-Ø60
Radome Material UV Resistance PVC
Rate Wind Velocity 210km/h
Operating Temperature -40℃ – +65℃
