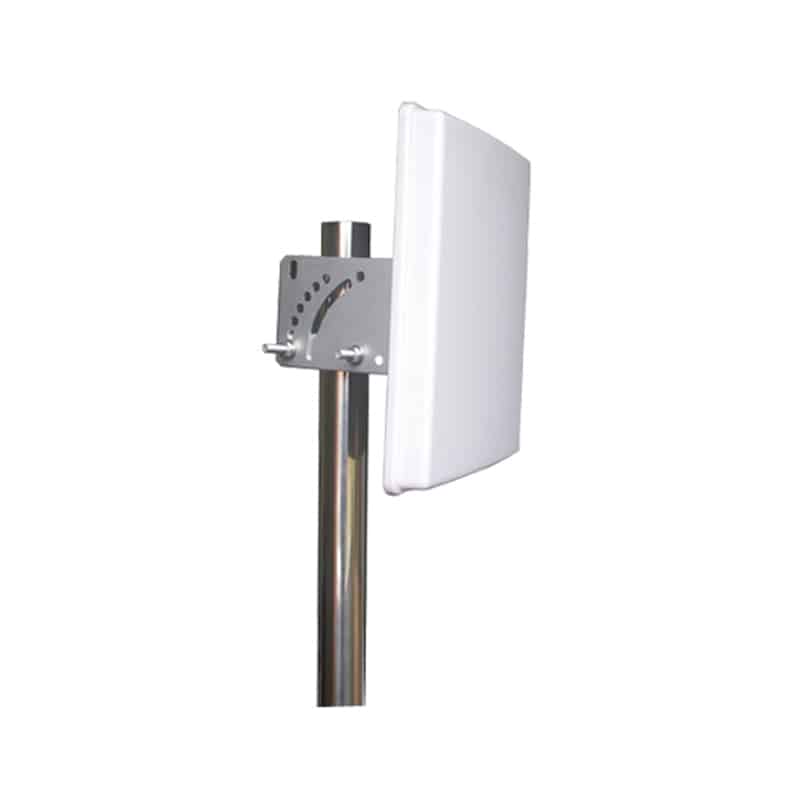

2.4GHz 10dBi Outdoor 4×4 MIMO WiFi Panel Antenna

Model NO: TPC-2400-10BX
  • Operated at 2400-2500MHz frequency band
  • True gain 10dBi
  • Dual slant ±45° cross polarization
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 210×180×44mm
  • 4×N Female connector
  • IP55 rain and dust resistant

CATEGORIES： Flat Panel WiFi Antennas, MIMO Panel Antennas, Panel Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency2400-2500 MHz
Gain10 dBi
VSWR<1.5
Polarization±45°
Horizontal Beam Width65°
Vertical Beam Width55°
F/B Ratio≥18dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4×N Female
Dimension210×180×44mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
