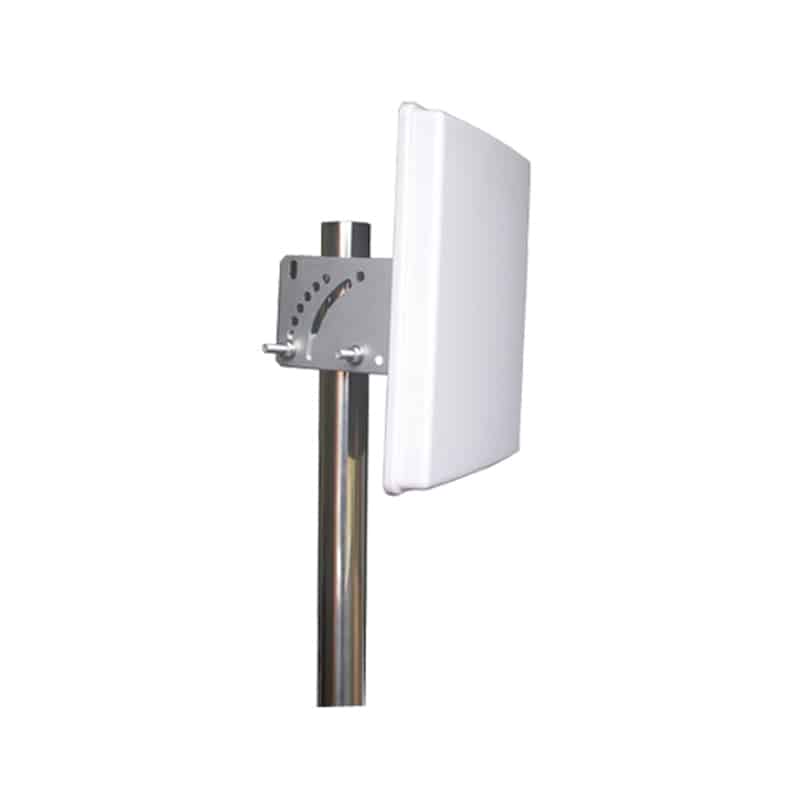

2.4GHz 14dBi Dual Polarization 2×2 MIMO Panel Antenna

Model NO: TPC-2400-14D

  • Operated at 2400-2500MHz frequency band
  • True gain 14dBi
  • V/H dual polarization
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 250×250×40mm
  • 2×N Female connector
  • IP55 rain and dust resistant

  • Product Detail
Model NOTPC-2400-14D
Electrical Specifications
Frequency2400-2500 MHz
Gain14 dBi
VSWR<1.5
PolarizationHorizontal and Vertical
Horizontal Beam Width35°
Vertical Beam Width35°
F/B Ratio≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension250×250×40mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
