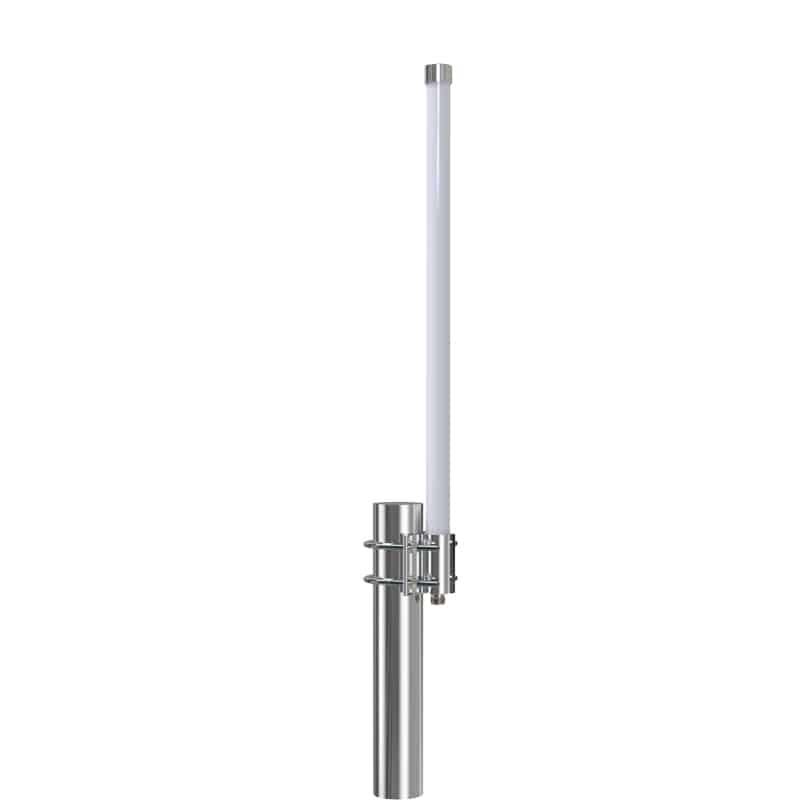

2.4GHz 9dBi Outdoor Long Range Omnidirectional WiFi Antenna

Model NO: TOF-2400-9V
  • Operated at 2400-2500MHz frequency band
  • True 9dBi high gain
  • Omnidirectional antenna, ideal for outdoor signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×640mm
  • IP55 rain and dust resistant
  • Typical N Female connector

CATEGORIES： 2.4GHz LoRa Antennas, Omni Directional WiFi Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency2400-2500 MHz
Gain9 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width15°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×640mm
Weight0.6kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Ingress ProtectionIP66
Operating Temperature-40℃ – +65℃
