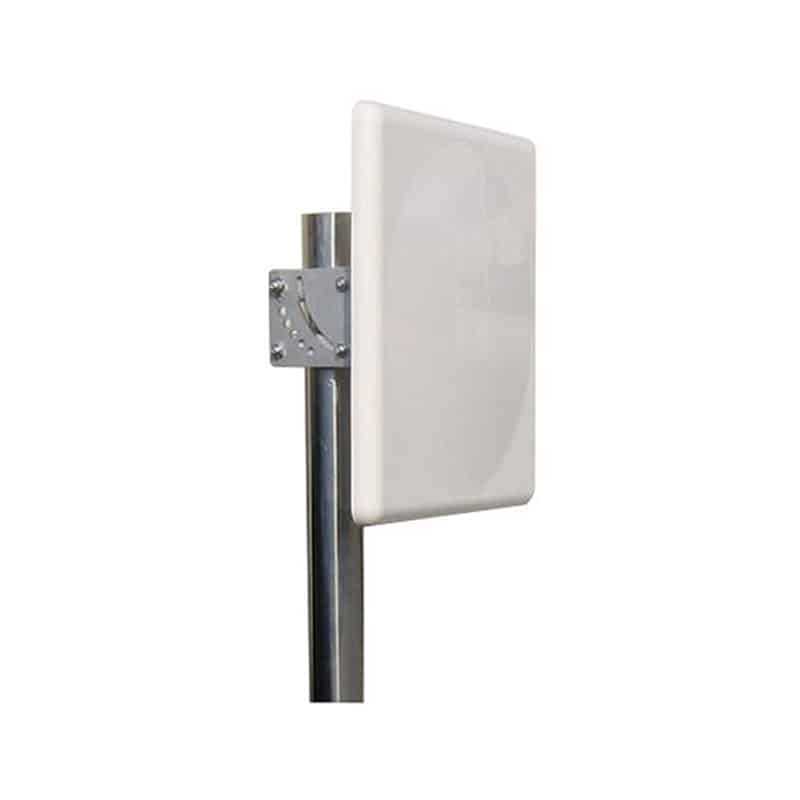

3.5GHz 19dBi High Gain Directional MIMO Panel Antenna

Model NO: TPC-3436-19D
  • Operated at 3400-3600MHz frequency band
  • True 19dBi high gain
  • Narrow beamwidth directional for point to point connection
  • Outdoor pole mount installation
  • Rugged weatherproof ABS antenna housing
  • Dimensions: 305×305×25mm
  • 2×N Female connector
  • IP55 rain and dust resistant

CATEGORIES： MIMO Panel Antennas, Panel Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency3400-3600 MHz
Gain19 dBi
VSWR<1.5
PolarizationHorizontal and Vertical
Horizontal Beam Width14°
Vertical Beam Width14°
F/B Ratio≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension305×305×25mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
