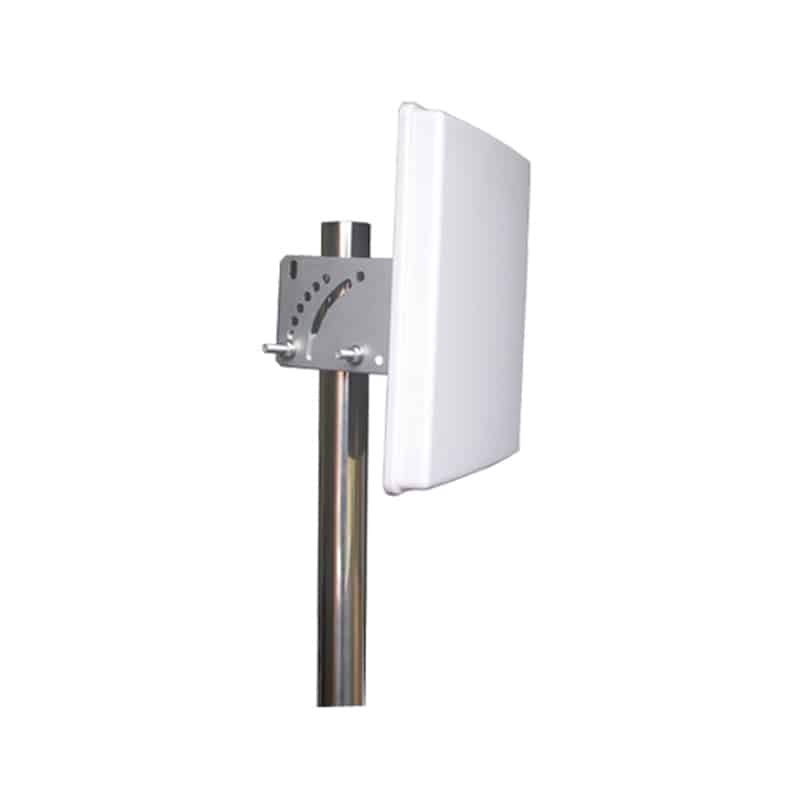

5.1-5.8GHz 15dBi Outdoor Directional Panel WiFi Antenna

Model NO: TPC-5158-15V
  • Operated at 5150-5850MHz frequency band
  • True gain 15dBi
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 210×180×44mm
  • N Female connector
  • IP55 rain and dust resistant

CATEGORIES： Flat Panel WiFi Antennas, Panel Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency5150-5850 MHz
Gain15 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width60°
Vertical Beam Width16°
F/B Ratio≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension210×180×44mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
