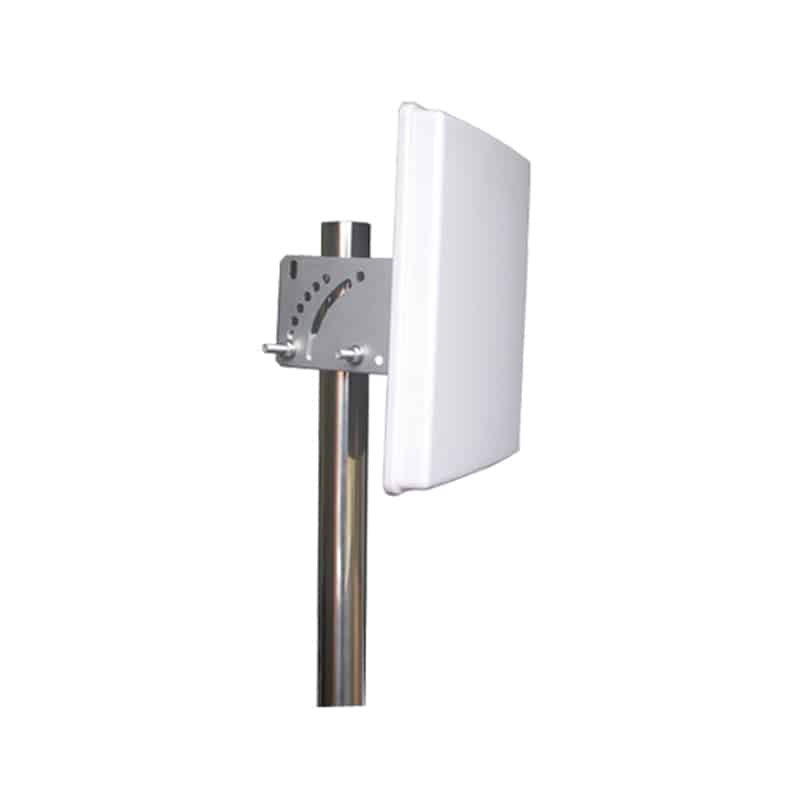

5.1-5.8GHz 8dBi Outdoor Directional 2×2 MIMO Panel Antenna

Model NO: TPC-5158-8D
  • Operated at 5150-5850MHz frequency band
  • True gain 8dBi
  • V/H dual polarization
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 140×120×40mm
  • 2×N Female connector
  • IP55 rain and dust resistant

CATEGORIES： Flat Panel WiFi Antennas, MIMO Panel Antennas, Panel Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency5150-5850 MHz
Gain8 dBi
VSWR<1.8
PolarizationHorizontal and Vertical
Horizontal Beam Width78°
Vertical Beam Width65°
F/B Ratio≥15dB
Isolation≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension140×120×40mm
Weight0.3kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
