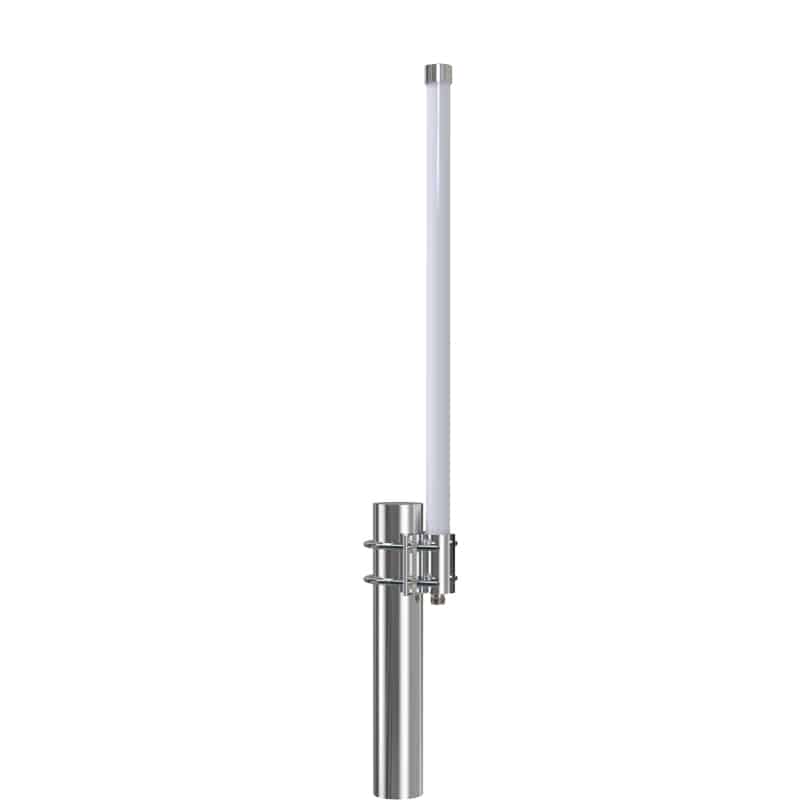

800MHz 8dBi Outdoor Omnidirectional Fiberglass Antenna

Model NO: TOF-80890-8V
  • Operated at 806-896MHz frequency band
  • True 8dBi high gain
  • Suit for Cellular, ISM, GSM, CDMA etc applications
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×1540mm
  • Typical N Female connector

CATEGORIES： 2G/3G Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency806-896 MHz
Gain8 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width18°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×1540mm
Weight1kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
