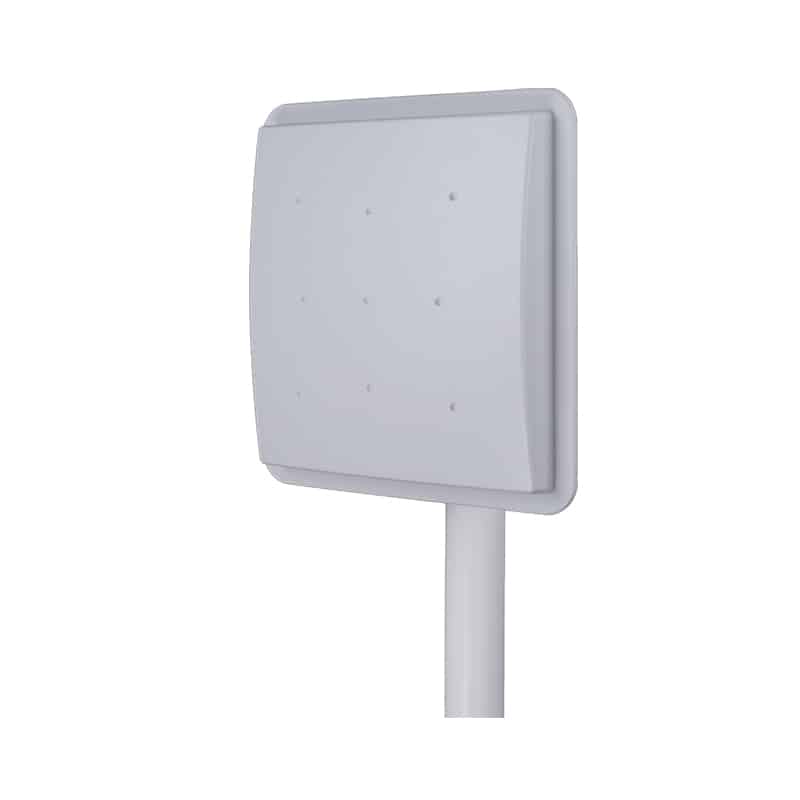

868/915MHz 8dBi External Directional Panel LoRa Antenna

Model NO: TPC-86930-8V
  • Operated at 860-930MHz frequency band
  • True 8dBi high gain
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • Directional radiation for long range point to point connection
  • Outdoor pole mount installation
  • Rugged and weatherproof
  • Typical N Female connector

CATEGORIES： 868/915MHz LoRa Antennas, Helium Antennas, Panel Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency860-930 MHz
Gain8 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width80°
Vertical Beam Width68°
F/B Ratio≥18dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension250×250×35mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
