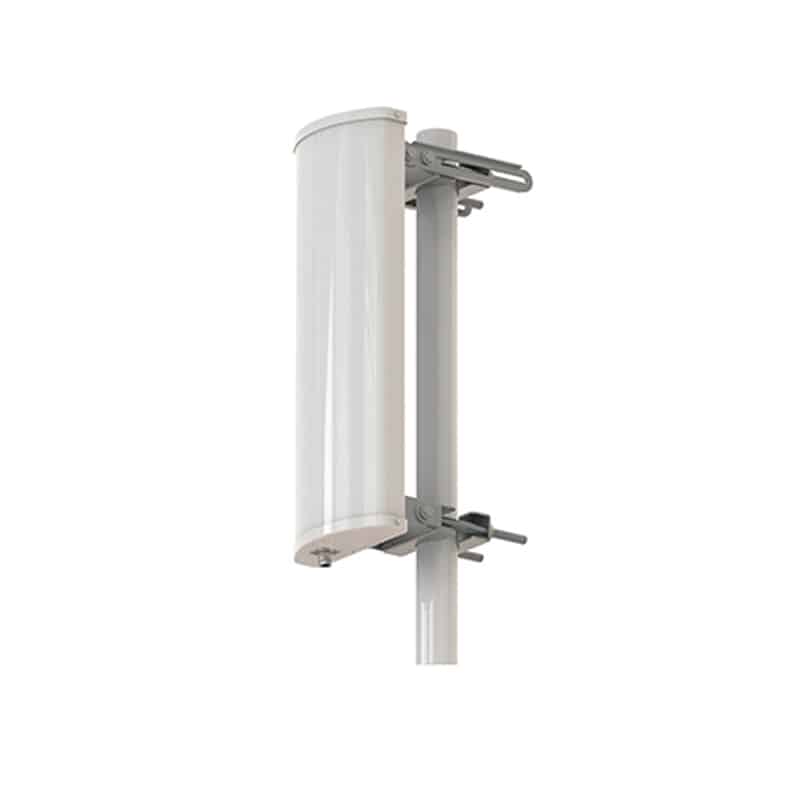

868MHz 13dBi 120 Degree Directional Sector Antenna

Model NO: TSC-86870-13V120
  • Operated at 860-870MHz frequency band
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • True 13dBi gain
  • 120 degree beamwidth
  • Heavy-duty angle and tilt adjustment mounting brackets
  • Rugged UV protected PVC antenna housing
  • Typical N Female connector

CATEGORIES： 868MHz LoRa Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency860-870 MHz
Gain13 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width120°
Vertical Beam Width16°
F/B Ratio≥22dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension1200×280×125mm
Weight6.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
