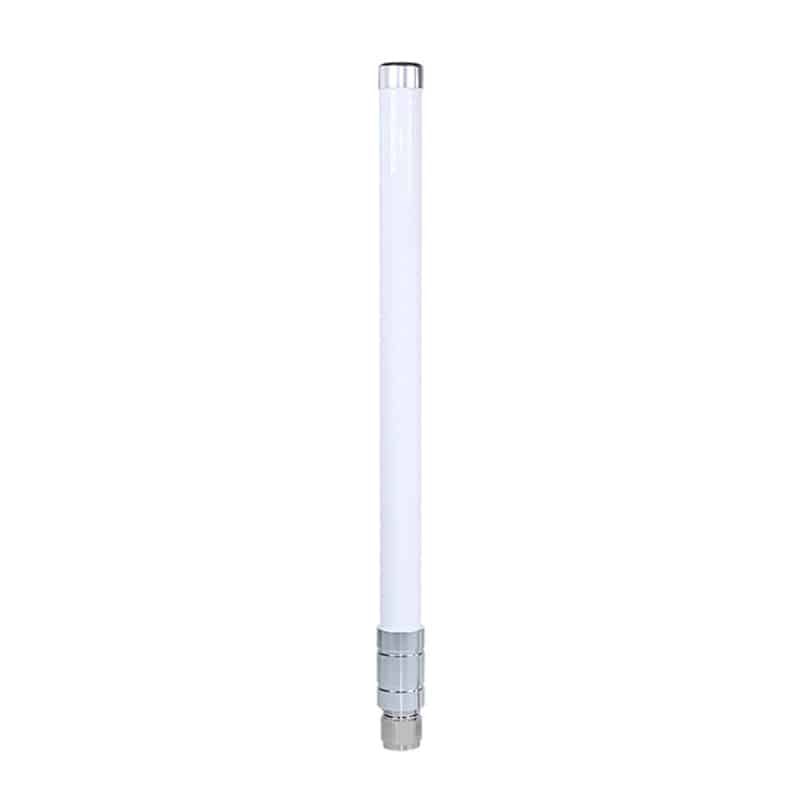

868MHz 3dBi Outdoor LoRaWAN Helium Fiberglass Antenna

Model NO: TOF-86870-3V
  • Operated at 860-870MHz frequency band
  • True 3dBi high gain
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×350mm
  • Typical N Female connector

CATEGORIES： 860-870MHz RFID Antennas, 868MHz LoRa Antennas, Helium Antennas,
Request a quote
  • Product Detail
Electrical Specifications
Frequency860-870 MHz
Gain3 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width60°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Male
DimensionØ20×350mm
Weight0.4 kg
MountingAttach to devices directly
Radome MaterialFiberglass (White/optional)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
