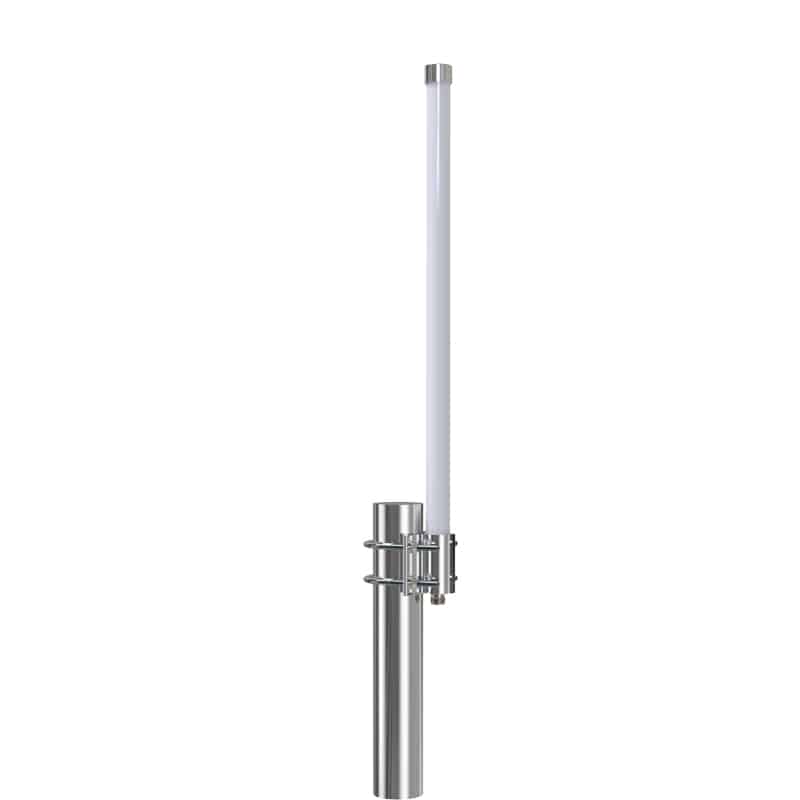

900MHz 8dBi Outdoor Omni Directional GSM Antenna

Model NO: TOF-89960-8V

  • Operated at 890-960MHz frequency band
  • True 8dBi high gain
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×1540mm
  • Typical N Female connector

Price:$29.00

$29

* The listed price is for sample only, request a quote from us for bulk order.

CATEGORIES:
Model NOTOF-89960-8V
Electrical Specifications
Frequency890-960 MHz
Gain8 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width18°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×1540mm
Weight1kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
