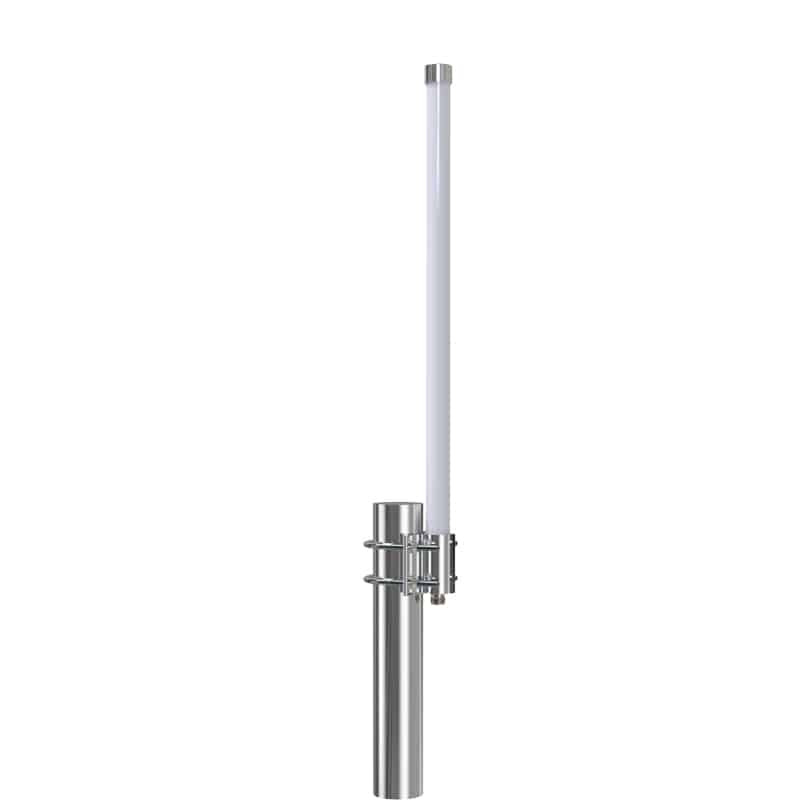

915MHz 6.8dBi Outdoor Helium Network Fiberglass Antenna

Model NO: TOF-90930-7V

  • Operated at 902-928MHz frequency band
  • True 7dBi high gain
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×965mm
  • Typical N Female connector

  • Product Detail
Model NOTOF-90930-7V
Electrical Specifications
Frequency902-928 MHz
Gain6.8 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width30°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×965mm
Weight0.7 kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
