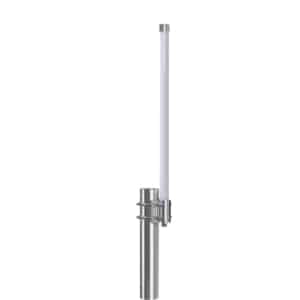

2.4GHz 12dBi Outdoor High Gain Omnidirectional WiFi Antenna

Model NO:

TOF-2400-12V

  • Operated at 2.4/5GHz frequency band
  • Quality copper elements inside make sure it high gain
  • Radiates signal in all direction, ideal for outdoor signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • IP66 rain and dust resistant
  • Typical N Female connector(accept other connectors)

SHARE:

The TOF-2400 series high gain omnidirectional wifi antenna designed for outdoor wifi signal coverage, increasing the signal strength and range of your 2.4GHz Wi-Fi devices including routers, gateways, modems, bridges, boosters and repeaters in all directions. Working on 2400-2500MHz frequency band, it is ideal suit for lots of applications such as Wi-Fi, Bluetooth, Zigbee, IoT, LoRa/LoRaWAN and RFID etc.,

FEATURES:

  • High gain for outdoor maximize the WiFi signal coverage
  • Designed for high performance, excellent radiation pattern
  • Good VSWR, less than 1.5 or better
  • Outdoor weatherproof designed with durable fiberglass antenna radome and IP66 Rated sealing protection
  • Typical N Female connector which is compatible with most of wireless devices
  • Provided a set of heavy-duty pole or wall mounting kit for various environment

The 2.4GHz outdoor omnidirectional wifi antenna radiates a signal in a 360 degree pattern that transmitted the signal maximum distance as possible as it can, its ready-to-use design allow you to attach it to your exist routers or access point quickly to transmit the highest WiFi signal in all direction. But please note, you can only attach a 2.4GHz WiFi antenna to the devices which is support 2.4GHz frequency band.

Superior design

The Omni WiFi antenna construct of full copper elements ensure its superior electrical performance, metal elements featured better and more stable performance. Durable fiberglass housing is designed for outdoor installation against dust and raining, it can withstand harsh conditions outdoors. Equipped a typical N type female connector in bottom of the antenna is also good for waterproof to prevent water from running back in, beside, N type connector is widely compatible with most of wireless equipment that using a coax cable.

Antenna installation

All of our antennas come with a set of heavy-duty mounting kit include U-bolts and nuts, they are very easy to install to a pole or on the wall directly. The omni antenna usually install to the roof without any obstacles to maximun transmit the WiFi signal to the end users.

Customization

We accept the customization service including connector, frequency, antenna appearance, mounting kit, and logo printing, packaging etc.,



Electrical Specifications
Frequency2400-2500 MHz
Gain12 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width7.5°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ25×960mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Ingress ProtectionIP66
Operating Temperature-40℃ – +65℃
