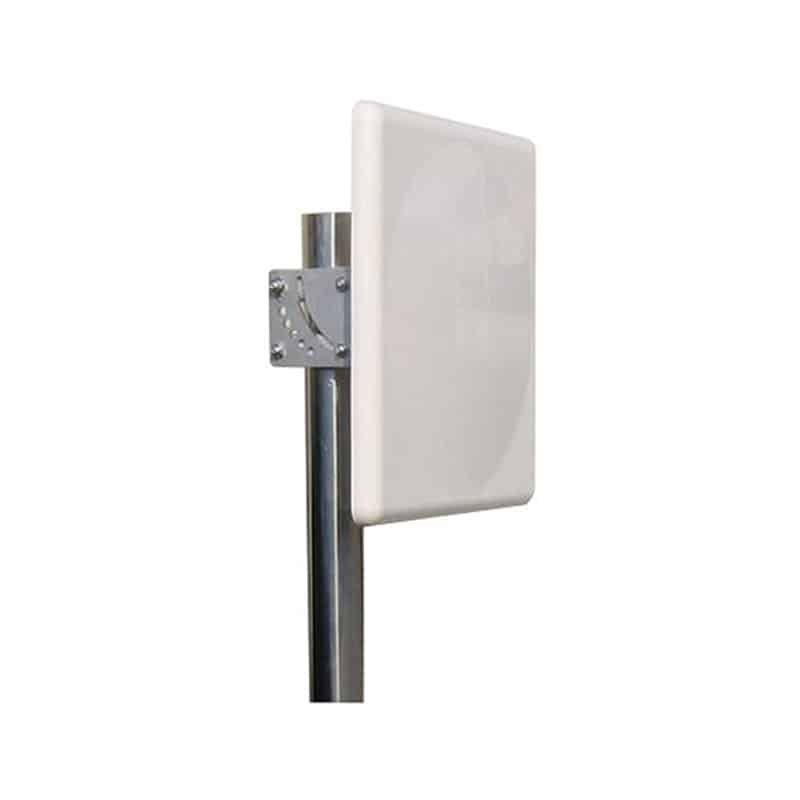

5.1-5.8GHz 16dBi Outdoor 4×4 MIMO WiFi Panel Antenna

Model NO: TPC-5158-16BD

  • Operated at 5150-5850MHz frequency band
  • True gain 16dBi
  • V/H dual polarization
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 305×305×25mm
  • 4×N Female connector
  • IP55 rain and dust resistant

  • Product Detail
Model NOTPC-5158-16BD
Electrical Specifications
Frequency5150-5850 MHz
Gain16 dBi
VSWR<1.7
Polarization2×Horizontal and 2×Vertical
Horizontal Beam Width17°
Vertical Beam Width17°
F/B Ratio≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4×N Female
Dimension305×305×25mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
