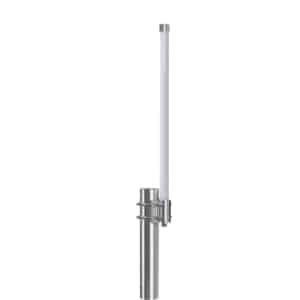

140-170MHz 5dBi VHF Base Station Omnidirectional Antenna

Model NO:

TOF-14170-5V

  • Operated at 144-174MHz frequency band
  • True 5dBi high gain
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Typical N Female connector

CATEGORIES:

SHARE:

Electrical Specifications
Frequency144-174 MHz
Gain5 dBi
VSWR<1.8
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width48°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×1540 mm
Weight0.9 kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
