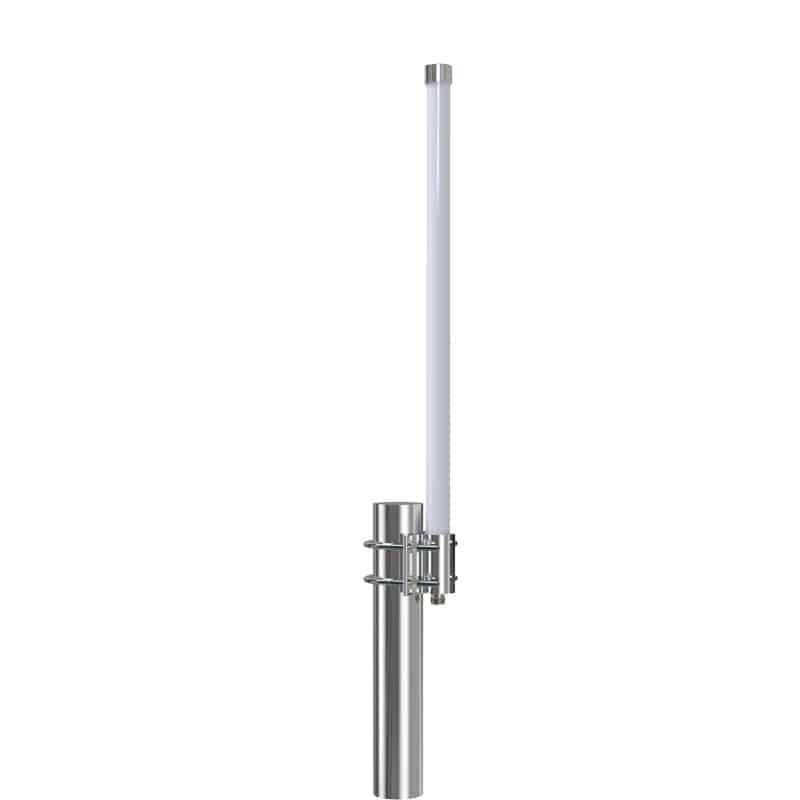

824-960MHz 8dBi High Gain Outdoor Omnidirectional Antenna

Model NO: TOF-82960-8V

  • Operated at 824-960MHz frequency band
  • True 8dBi high gain
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • Omnidirectional radiation for outdoor 360 degree signal covered
  • Outdoor pole mount installation
  • Rugged weatherproof fiberglass antenna housing
  • Dimensions: Ø20×1540mm
  • Typical N Female connector

  • Product Detail
Model NOTOF-82960-8V
Electrical Specifications
Frequency824-960 MHz
Gain8 dBi
VSWR<1.8
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width16°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ20×1540mm
Weight0.9 kg
MountingMast Ø40-Ø60 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
