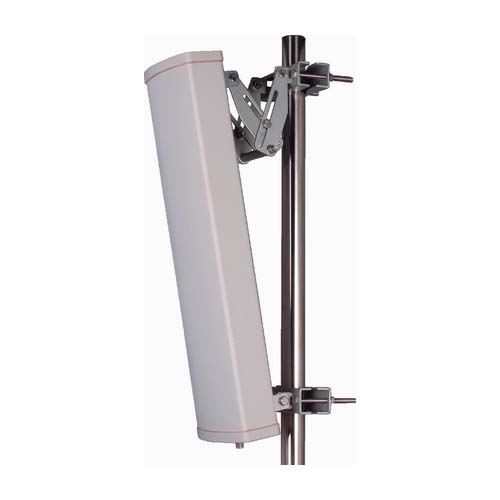

868/915MHz 12dBi 65° Directional LoRa Helium Sector Antenna

Model NO: TSC-86930-12V65
  • Operated at 860-930MHz frequency band
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • True 12dBi gain
  • 65 degree horizontal beamwidth
  • Heavy-duty angle and tilt adjustment mounting brackets
  • Rugged UV protected PVC antenna housing
  • Typical N Female connector

  • Product Detail
  • FAQs
Electrical Specifications
Frequency860-930 MHz
Gain12 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width65°
Vertical Beam Width35°
F/B Ratio≥22dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension750×280×125mm
Weight4.3kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃

Q : Do you offer samples for reviewing and testing?

A : Yes, we can provide samples to you for testing before bulk orders. Please contact us directly for sample cost and delivery time.

Q : What’s MOQ request?

A : We are factory, NOT retailer, we don’t make stock of our products, therefore we request a MOQ for bulk order, while the MOQ is different that depends on each product criteria. For more details, please contact us directly.

Q : How fast can goods be delivered?

A : The lead time for samples is general within 2 week, sometimes can make it within 5 days. And the lead time for bulk order is general 2 weeks at least and 1 month max.

Q : Does your product have warranty?

A : Yes, we offer 1 year warranty period for our products. After-sales services is also available if you need any assistance from us anytime.

Q : What payment method is available?

A : Payment is proceeded via T/T for bulk order, we accept credit card or paypal for sample cost.
