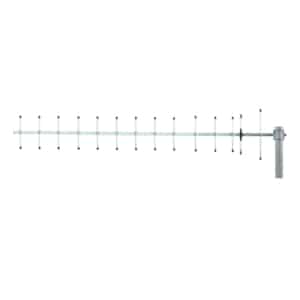

890-960MHz 14dBi Outdoor Directional GSM Yagi Antenna

Model NO:

TYC-89960-14E

  • Frequency range: 890-960MHz
  • 14dBi high gain
  • Suit for GSM, Cellular, ISM, LoRa, Helium, etc applications
  • Narrow beam directional radiation for point to point connection
  • Typical N Female connector with 30cm RG58 low loss cable
  • Outdoor pole mount installation

SHARE:

Electrical Specifications
Frequency890-960 MHz
Gain14 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width31°
Vertical Beam Width29°
F/B Ratio≥16dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension1080×185×55mm
Weight0.8kg
MountingMast Ø40-Ø60 mm
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
