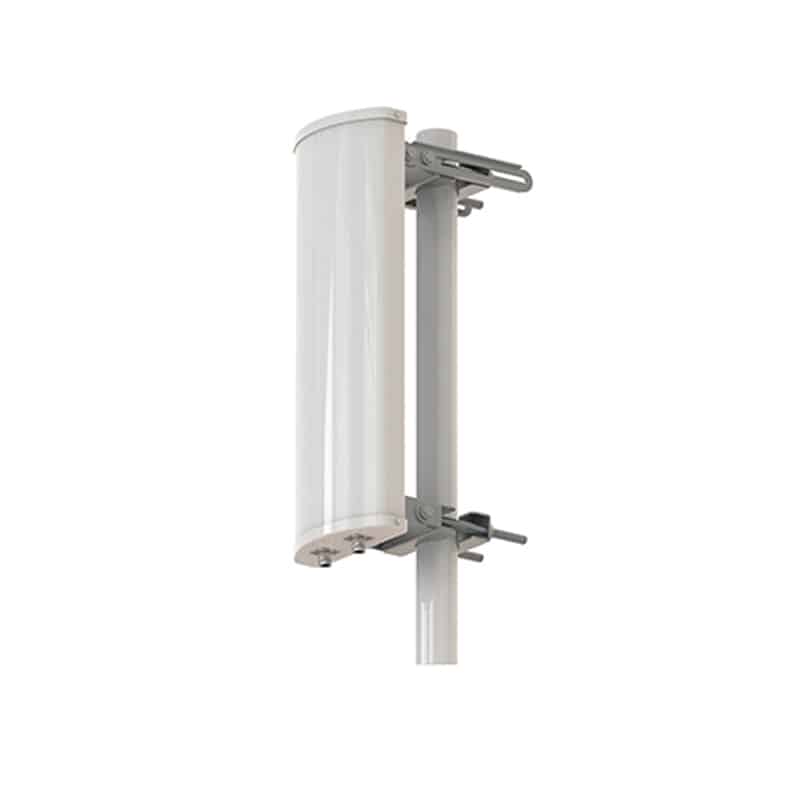

915MHz 13dBi 120° Dual Polarity 2×2 MIMO Sector Antenna

Model NO: TSC-90930-13X120
  • Operated at 902-928MHz ISM frequency band
  • Suit for LoRa, RFID, ISM, Helium etc applications
  • True 13dBi gain for each radiator
  • 120-degree 3dB horizontal beamwidth
  • ±45° dual polarization
  • Heavy-duty mounting brackets
  • Rugged UV protected PVC antenna housing
  • Dimensions: 1200×290×130mm
  • 2×N Female connector

CATEGORIES: MIMO Sector Antennas,
  • Product Detail
  • FAQs
Electrical Specifications
Frequency-902-928 MHz
Gain13 dBi
VSWR<1.5
Polarization±45°
Horizontal Beam Width120°
Vertical Beam Width16°
F/B Ratio≥23dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension1200×290×130mm
Weight3kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃

Q : Do you offer samples for reviewing and testing?

A : Yes, we can provide samples to you for testing before bulk orders. Please contact us directly for sample cost and delivery time.

Q : What’s MOQ request?

A : We are factory, NOT retailer, we don’t make stock of our products, therefore we request a MOQ for bulk order, while the MOQ is different that depends on each product criteria. For more details, please contact us directly.

Q : How fast can goods be delivered?

A : The lead time for samples is general within 2 week, sometimes can make it within 5 days. And the lead time for bulk order is general 2 weeks at least and 1 month max.

Q : Does your product have warranty?

A : Yes, we offer 1 year warranty period for our products. After-sales services is also available if you need any assistance from us anytime.

Q : What payment method is available?

A : Payment is proceeded via T/T for bulk order, we accept credit card or paypal for sample cost.
