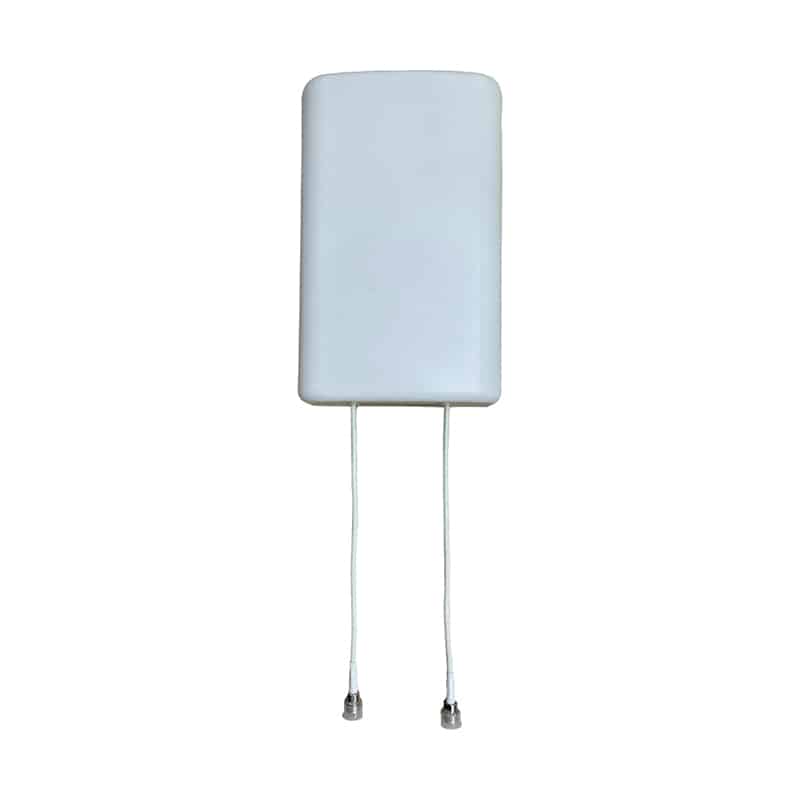

2.3-2.7GHz 14dBi Outdoor Directional Dual Slant Polarity MIMO Panel Antenna

Model NO:

TPC-2327-14X

  • Operated at 2300-2700MHz frequency band
  • True 14dBi gain for each radiator
  • ±45° dual slant cross polarization
  • Mounting kit included
  • Rugged UV protected ABS antenna housing
  • Dimensions: 300×180×80 mm
  • 2×N Female connector

SHARE:

Electrical Specifications
Frequency2300-2700 MHz
Gain14 dBi
VSWR<1.5
Polarization±45°
Horizontal Beam Width40°
Vertical Beam Width40°
F/B Ratio≥20dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension260×170×60mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
