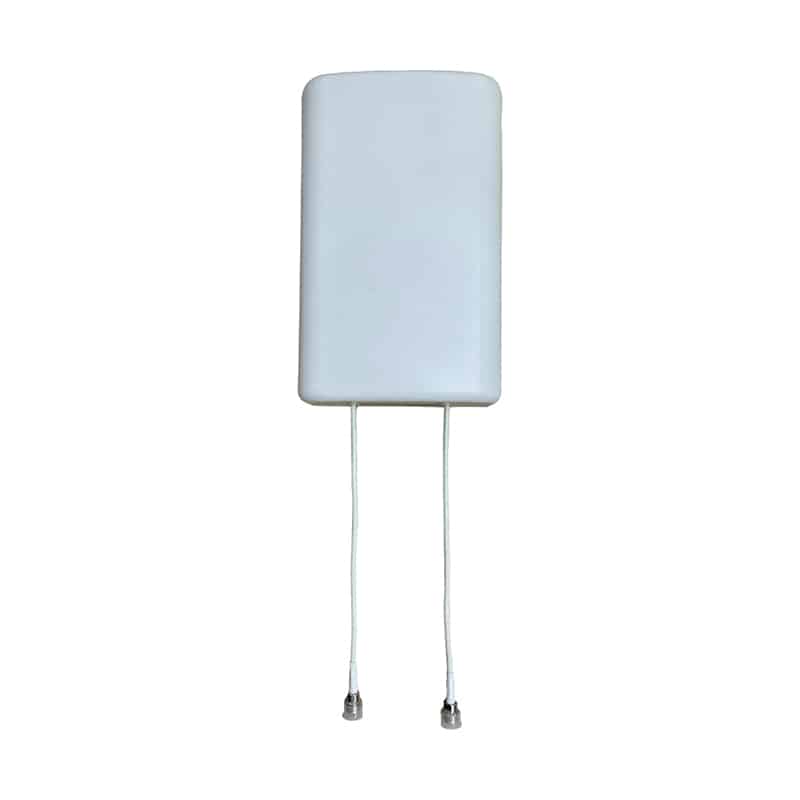

698-2700MHz Outdoor External 2×2 MIMO 4G LTE Directional Antenna

Model NO: TPC-0727-9X

  • Operated at 698-960/1710-2700MHz frequency band
  • Suit for WiFi, GSM, 3G, 4G LTE etc applications
  • True 8-8.5dBi gain for each radiator
  • ±45° dual slant cross polarization
  • Mounting kit included
  • Rugged UV protected ABS antenna housing
  • Dimensions: 300×180×80 mm
  • 2×N Female connector

Price:$29.00

$29

* The listed price is for sample only, request a quote from us for bulk order.

CATEGORIES: , , ,
Model NOTPC-0727-9X
Electrical Specifications
Frequency-MHz698-960/1710-2700
Gain-dBi8/8.5
VSWR<2
Polarization±45°
Horizontal Beam Width80°
Vertical Beam Width65°
F/B Ratio≥18dB
Isolation≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension300×180×80 mm
Weight0.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
