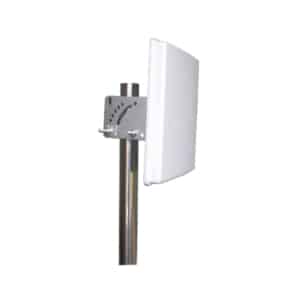

2.4-7.2GHz 13dBi Outdoor 4-Ports MIMO Directional WiFi 6E Panel Antenna

Model NO:

TPC-2472-13BD

  • Operated on 2400-2500/4900-7125MHz band
  • 10/13dBi high gain
  • Directional radiation pattern
  • Pole mount for outdoor use
  • 4*N Female connector

SHARE:

Electrical Specifications
Frequency-MHz2400-25004900-7125
Gain-dBi1013
VSWR<2
Polarization2*Vertical and 2*horizontal
Horizontal Beam Width55°44°
Vertical Beam Width50°40°
F/B Ratio≥25dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power50W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4×N Female
Dimension250×250×25mm
Weight0.7kg
MountingMast Ø30-Ø50 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
