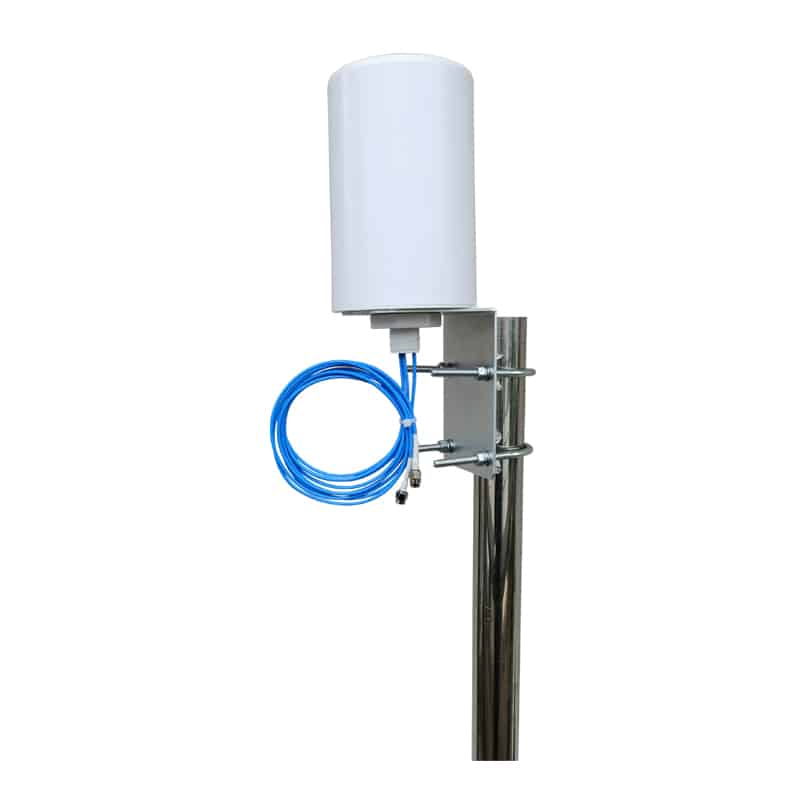

2400-7125MHz Outdoor Omnidirectional 6-Ports 6×6 MIMO WiFi 6E Antenna

Model NO:

TOF-2472-6FV

  • Operated at 2400-2500/4900-7125MHz frequency band on each port
  • True gain: 4dBi@2.4GHz and 6dBi@5/6GHz
  • Three independent vertical antennas in a single housing
  • Outdoor pole mount installation
  • Rugged UV Protected PVC antenna housing
  • Dimensions: Φ128×220 mm
  • 6×RP-SMA male connector with 30cm cable

SHARE:

Electrical Specifications
Frequency-MHz2400-25004900-7125
Gain-dBi46
VSWR<1.5<2.2
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width48°28°
Impedance50Ω
Max. Input Power50W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector6×RP SMA Male
DimensionØ128×220 mm
Weight1.3kg
MountingMast Ø30-Ø50 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
