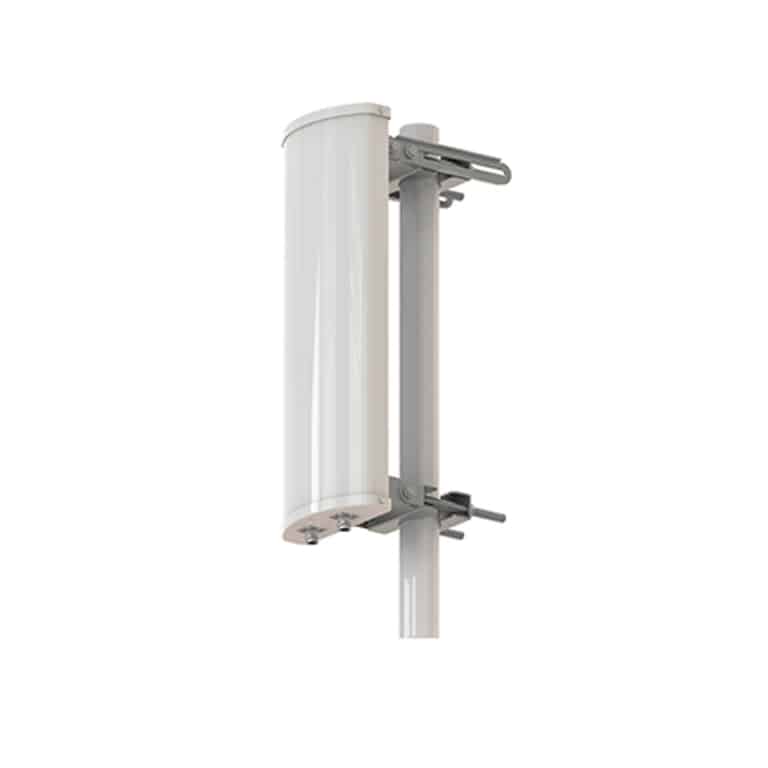

2.4GHz 16dBi 2×2 MIMO 120 Degree Sector Antenna

Model NO: TSC-2400-16D120

  • Operated at 2400-2483MHz frequency band for WiFi
  • 120 degree 3db horizontal beamwidth
  • True 16dBi gain for each radiator
  • V/H dual polarization
  • Outdoor pole mount installation
  • Heavy duty mounting brackets
  • Rugged UV protected PVC antenna housing
  • Dimensions: 1300×134×64mm
  • 2×N Female connector

Price:$49.00

$49

* The listed price is for sample only, request a quote from us for bulk order.

CATEGORIES: ,
Model NOTSC-2400-16D120
Electrical Specifications
Frequency2400-2500 MHz
Gain16 dBi
VSWR<1.8
PolarizationHorizontal and Vertical
Horizontal Beam Width120°
Vertical Beam Width
F/B Ratio≥20dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension1300×134×64mm
Weight3.5kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
