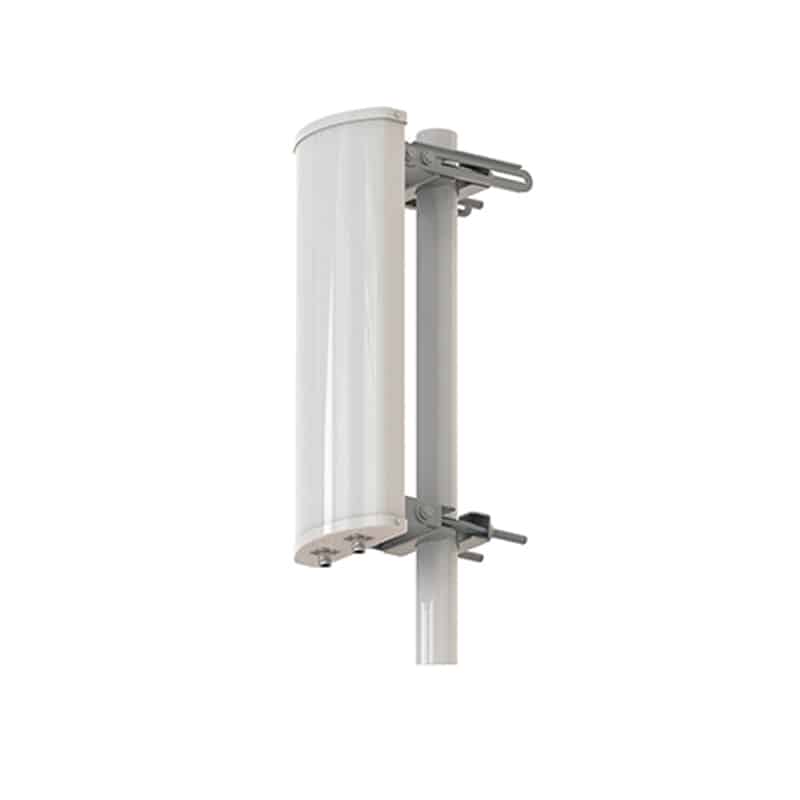

824-960MHz 13dBi 120 Degree Cross Polarity MIMO Sector Antenna

Model NO:

TSC-82960-13X120

  • Operated at 824-960MHz frequency band
  • Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
  • True 13dBi gain for each radiator
  • 120-degree 3dB horizontal beamwidth
  • ±45° dual polarization
  • Heavy-duty mounting brackets
  • Rugged UV protected PVC antenna housing
  • Dimensions: 1200×290×130mm
  • 2×N Female connector

SHARE:

Electrical Specifications
Frequency824-960 MHz
Gain13 dBi
VSWR<1.5
Polarization±45°
Horizontal Beam Width120°
Vertical Beam Width16°
F/B Ratio≥23dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension1200×290×130mm
Weight3kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
