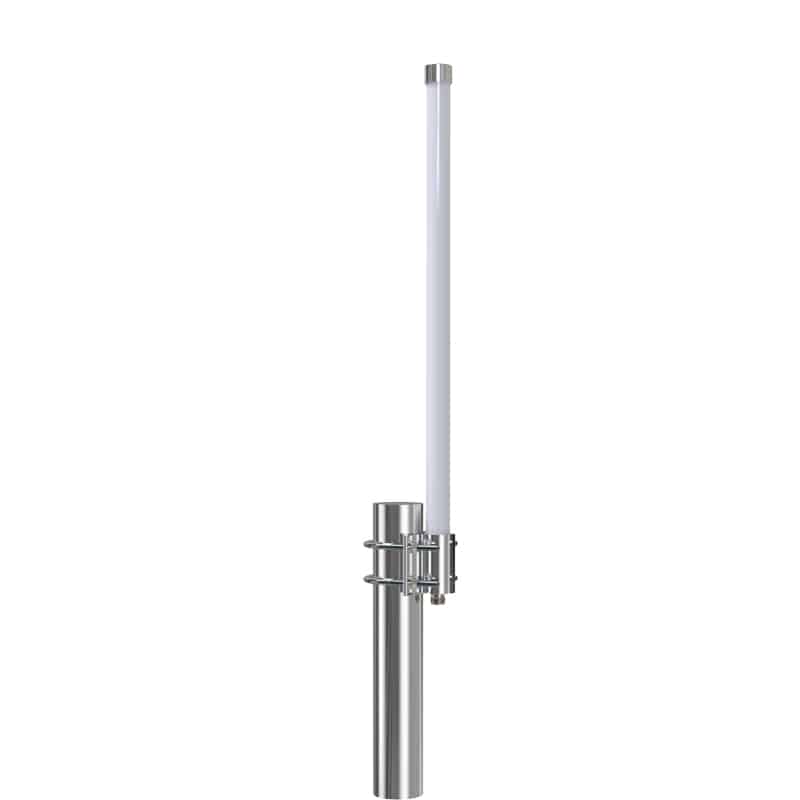

3.3-3.8GHz 11dBi Outdoor Omnidirectional WiMax Antenna

Model NO:

TOF-3338-11V

  • Operated on 3300-3800MHz Wimax band
  • 11dBi high gain design
  • 360 degree omnidirectional radiation pattern
  • Durable fiberglass radome
  • Typical N Female connector

SHARE:

Electrical Specifications
Frequency3300-3800 MHz
Gain11 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width360°
Vertical Beam Width8.5°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
DimensionØ25×630mm
Weight0.7kg
MountingMast Ø30-Ø50 mm
Radome MaterialFiberglass (White)
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
