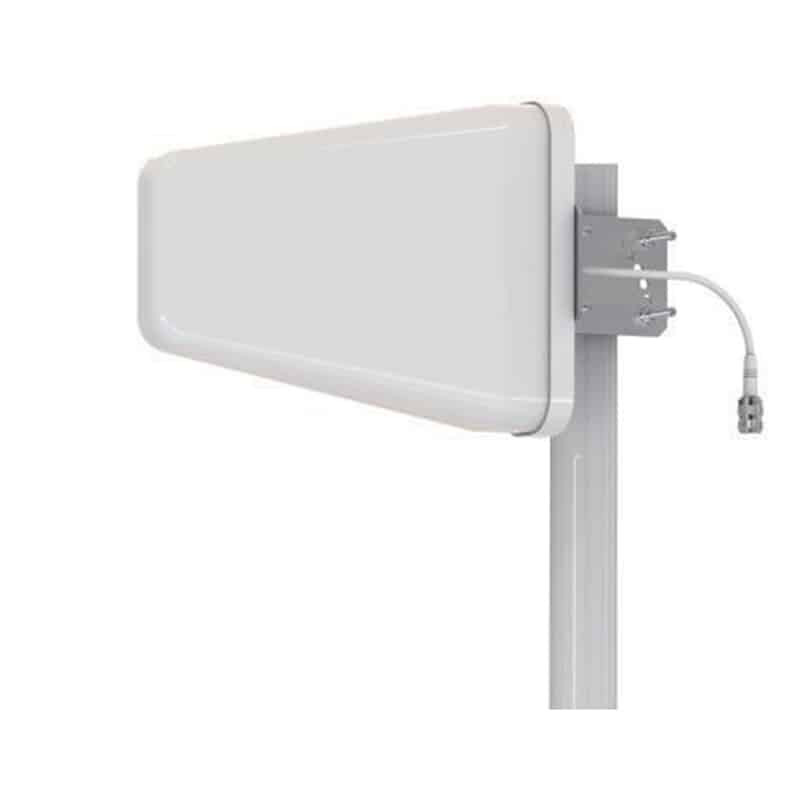

External 4G LTE Directional LPDA Yagi Antenna 698-2700MHz 9dBi

Model NO:

TLC-0727-9E

  • Operated at 698-960/1710-2700MHz band for 2G/3G/4G repeater/boosters
  • True 8/9dBi gain
  • Directional antenna for point to multiple point applications
  • Outdoor pole mount installation
  • Rugged UV protected ABS antenna housing
  • Dimensions: 310×207×65 mm
  • 30cm RG58 cable with an N Female connector

SHARE:

Electrical Specifications
Frequency- MHz698-9601710-2700
Gain-dBi89
VSWR<1.5
PolarizationVertical
Horizontal Beam Width68°65°
Vertical Beam Width65°60°
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension310×207×65mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
