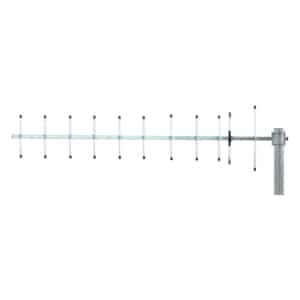

824-960MHz 12dBi Directional Yagi Antenna

Model NO:

TYC-82960-12E

  • Frequency range: 824-960MHz
  • 12dBi high gain
  • Suit for GSM, Cellular, ISM, LoRa, Helium, etc applications
  • Narrow beam directional radiation for point to point connection
  • Typical N Female connector with 30cm RG58 low loss cable
  • Outdoor pole mount installation

CATEGORIES:

SHARE:

Electrical Specifications
Frequency824-960 MHz
Gain12 dBi
VSWR<1.5
PolarizationVertical
Horizontal Beam Width45°
Vertical Beam Width44°
F/B Ratio≥15dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
ConnectorN Female
Dimension870×185×55 mm
Weight0.7 kg
MountingMast Ø40-Ø60 mm
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
