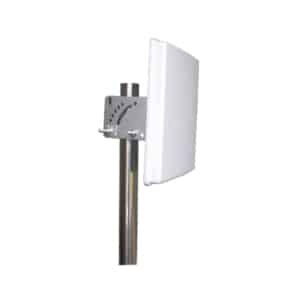

2.4/5GHz 13dBi Outdoor Directional Dual Band 6-Ports 6×6 MIMO Panel Antenna

Model NO:

TPC-2458-13CD

  • Operated at 2400-2500/4900-5850MHz dual-frequency band
  • True gain 10dbi@2.4GHz, 13dBi@5GHz
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 305×305×25mm
  • 6×N Female connector
  • IP55 rain and dust resistant

SHARE:

Electrical Specifications
Frequency-MHz2400-25004900-5850
Gain-dBi1013
VSWR<1.8
Polarization3×Horizontal and 3×Vertical
Horizontal Beam Width48°35°
Vertical Beam Width45°20°
F/B Ratio≥18dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector6×N Female
Dimension305×305×25mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
