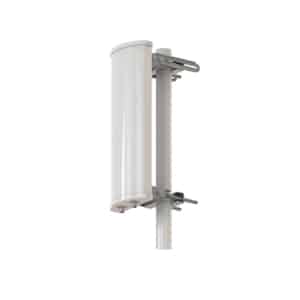

4.9-5.8GHz 16dBi 90 Degree High Gain Directional MIMO Sector WiFi Antenna

Model NO:

TSC-4958-16D90

  • Operated at 4900-5850MHz frequency band
  • True 16dBi gain for each radiator
  • 90-degree 3dB horizontal beamwidth
  • V/H dual polarization
  • Heavy-duty mounting brackets
  • Rugged UV protected PVC antenna housing
  • Dimensions: 504×165×60mm
  • 2×N Female connector

SHARE:

Electrical Specifications
Frequency4900-5850 MHz
Gain16 dBi
VSWR<1.8
PolarizationHorizontal and Vertical
Horizontal Beam Width90°
Vertical Beam Width
F/B Ratio≥25dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector2×N Female
Dimension504×165×60mm
Weight2kg
MountingMast Ø40-Ø60 mm
Radome MaterialUV Resistance PVC
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
