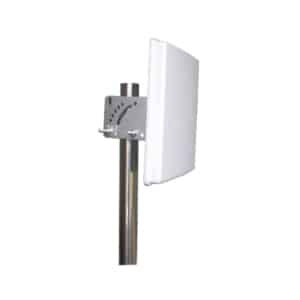

2.4/5GHz 13/15dBi Dual Band 4×4 MIMO WiFi Panel Antenna

Model NO.: TPC-2458-15BD

  • Operated at 2400-2500/4900-5850MHz dual-frequency band
  • True gain 12.5dbi@2.4GHz, 14.5dBi@5GHz
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 305×305×25mm
  • 4×N Female connector
  • IP55 rain and dust resistant

Price:$29.00

$29

* The listed price is for sample only, request a quote from us for bulk order.

CATEGORIES: , ,
Model NOTPC-2458-15BD
Electrical Specifications
Frequency-MHz2400-25004900-5850
Gain-dBi12.514.5
VSWR<2
Polarization2×Horizontal and 2×Vertical
Horizontal Beam Width40°30°
Vertical Beam Width40°28°
F/B Ratio≥20dB
Isolation≥28dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4×N Female
Dimension305×305×25mm
Weight0.7kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
