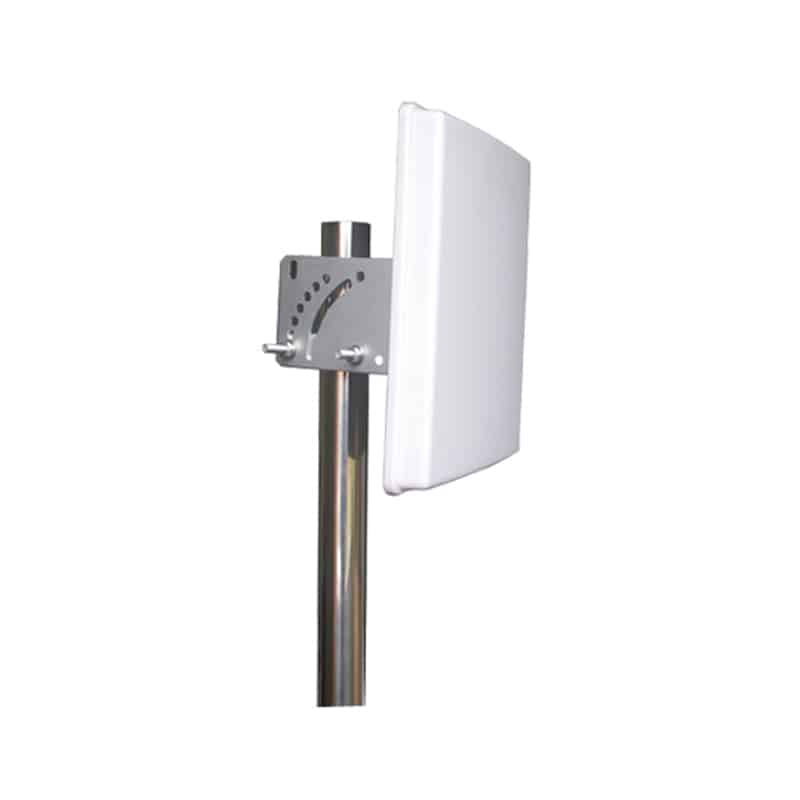

2.4/5GHz 6/7dBi Dual Band 4×4 MIMO Panel WiFi Antenna

Model NO.: TPC-2458-7DV

  • Operated at 2400-2500/4900-5850MHz dual-frequency band
  • True gain 6dbi@2.4GHz, 7dBi@5GHz
  • Directional antenna for outdoor point to point applications
  • Pole mount for outdoor installation
  • UV Protected ABS antenna housing for weatherproof
  • Dimensions: 140×120×40mm
  • 4×N Female connector
  • IP55 rain and dust resistant

CATEGORIES: Dual Band WiFi Antenna,
  • Product Detail
Model NOTPC-2458-7DV
Electrical Specifications
Frequency-MHz2400-25004900-5850
Gain-dBi67
VSWR<2
PolarizationVertical
Horizontal Beam Width77°48°
Vertical Beam Width77°27°
F/B Ratio≥16dB
Isolation≥20dB
Impedance50 ohms
Max. Input Power100W
Lightning ProtectionDC Ground
Mechanical Specifications
Connector4×N Female
Dimension140×120×40mm
Weight0.3kg
MountingMast Ø40-Ø60 mm
Radome MaterialABS
Rate Wind Velocity210km/h
Operating Temperature-40℃ – +65℃
