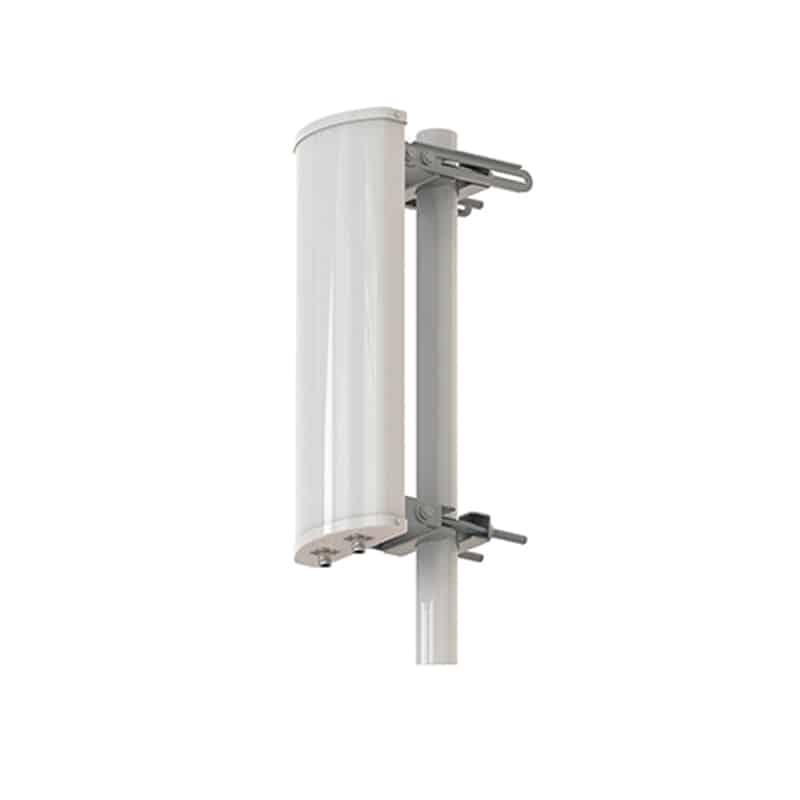

800 900MHz 14dBi 90° Base Station MIMO Sector Antenna

824-960MHz 14dBi 90 Degree Base Station 2×2 MIMO Sector Antenna

Model NO:

TSC-82960-14X90

Operated at 824-960MHz frequency band
Suit for Cellular, LoRa, RFID, ISM, Helium etc applications
True 14dBi gain for each radiator
90-degree 3dB horizontal beamwidth
±45° dual polarization
Heavy-duty mounting brackets
Rugged UV protected PVC antenna housing
Dimensions: 1200×290×130mm
2×N Female connector

CATEGORIES：

MIMO Sector Antennas, 2G/3G Sector Antennas

SHARE:

Electrical Specifications
Frequency	824-960 MHz
Gain	14 dBi
VSWR	<1.5
Polarization	±45°
Horizontal Beam Width	90°
Vertical Beam Width	16°
F/B Ratio	≥23dB
Isolation	≥28dB
Impedance	50 ohms
Max. Input Power	100W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	2×N Female
Dimension	1200×290×130mm
Weight	3kg
Mounting	Mast Ø40-Ø60 mm
Radome Material	UV Resistance PVC
Rate Wind Velocity	210km/h
Operating Temperature	-40℃ – +65℃
